Items
|
Parameter
|
|
Work Mode
|
Camera / Video / Camera+Video
|
|
Photo Size
|
3MP:2048×2536 ; 5MP:2542×1944
8MP:3264×2488 ; 12MP:4032×3024
16MP:4640×3480
|
|
Video Size
|
VGA:640x480; WVGA:800x480
|
|
720P:1280x720@30fps; 1080P:1920x1080@30fps
|
|
Working Time
|
Day /night, auto-induction switch
|
|
Lens
|
FOV=90 degree (G3R:50 degree), F=2.4 (G3R:2.5),
auto-induction switch filtering
|
|
IR Flash Distance
|
65 feet / 20 m
|
|
Infrared Lamp
|
42pcs; Visible light lamp/invisible light lamp selectable
|
|
Power Saving
|
On/off; Only 20 lights work after opened
|
|
LCD screen
|
2.4 inch, TFT colors, RGB
|
|
Operation Keypad
|
7 buttons
|
|
Beep Sounds
|
On/off
|
|

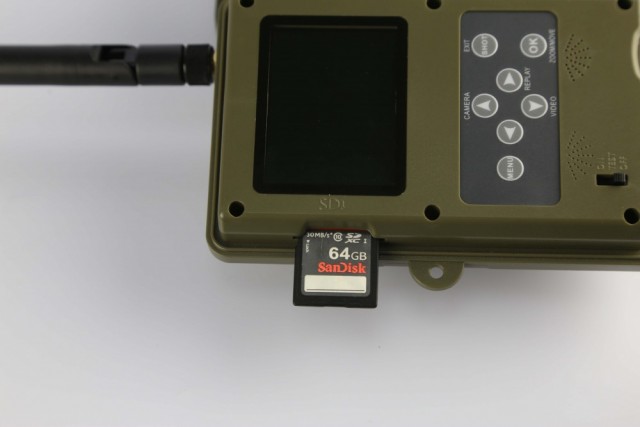

Memory
|
SD card, maximum support 64GB
|
|
PIR Level
|
High/Normal/Low
|
|
PIR Sensing Distance
|
65 feet / 20 m
|
|
PIR Sensing Angle
|
90 degree (G3R:50 degree)
|
|
Trigger Time
|
0.5 seconds (when use 2 GB card)
|
|
PIR Interval
|
3 seconds ～60 minutes, Programmable
|
|
Timer
|
On/ Off, can set two timers
|
|
Time Lapse
|
5 seconds ~ 24 Hours, Programmable
|
|
Shooting Number
|
1～6 photos (1～3 photos when in 16MP)
|
|
Video length
|
5 seconds～10 minutes, Programmable
|
|
Camera + Video
|
Take photos first, and then record video
|
|
Playback Zoom
|
1~8 times
|
|
Slide Show
|
3 Second/5 Second/8 Second
|
|
Loop Recording
|
On/Off
|
|
Lock Image
|
Locked or unlock image
|
|
Stamps
|
On/Off, Logo, temperature, moon phase, date, time, battery power
|
|
Password
|
4-digit number, each digit can be freely set with 0 ~9
|
|
Device No.
|
4-digit number, each digit can be freely set with 26 alphabets or 0~9.
|
|
APP
|
Coming soon
|
|
Network Band
|
800/850/900/1900/2100MHz
|
|
Email
|
Two mailboxes can be set.
Message notice can be set at the same time.
Either original (maximum 16M) or thumbnail (640x480) can be sent.
|
|
MMS
|
Only send thumbnail (640x480)
|
|
SMS
|
Send message notice
|
|
Sending Interval
|
Instant, 5sec~1 hour, Off
|
|
Safety Message
|
No trigger for 12 hours, it will send message (time, electricity quantity, remaining storage capacity) to designated cell phone.
|
|
Standby Time
|
3~6 months (4×AA~8×AA)
|
|
Auto Power Off
|
Automatic shutdown can be set for 1~10 minutes with no operation.
|
|
Power Source
|
4×AA, 8×AA
|
|
External DC Power Supply
|
6V/2A
|
|
Standby Current
|
0.4mA
|
|
Power Consumption
|
200mA( +700mA when IR LED lights up)
250mA (start network, maximum peak is 400mA)
|
|
Low Battery Alarm
|
4.8V
|
|
Interface
|
TV-out/USB, SD card slot, 6V DC power port, network antenna, SIM card slot
|
|

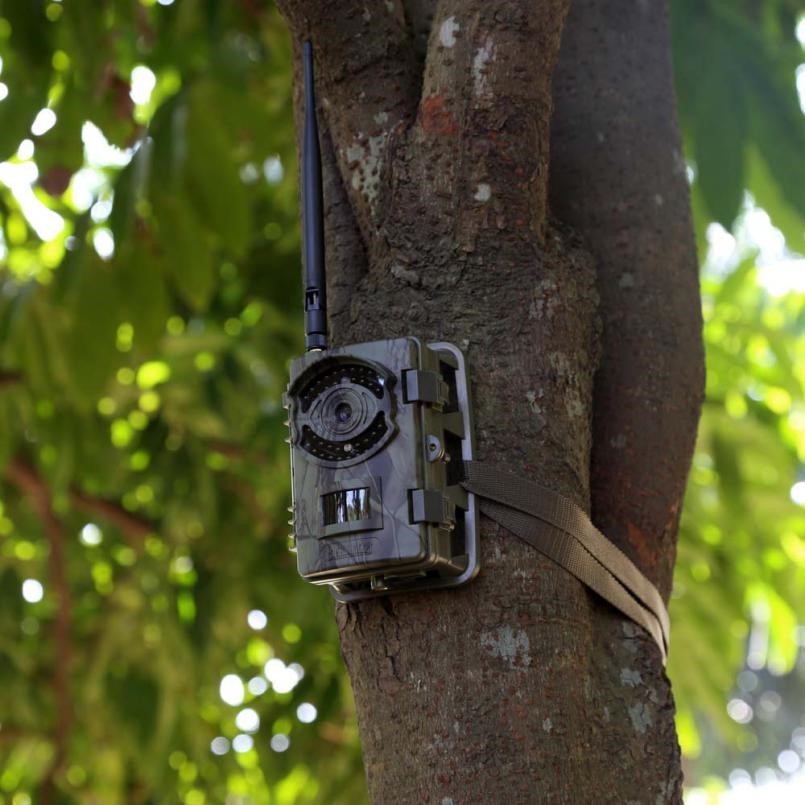

Mounting
|
Strap; Tripod nail
|
|
Waterproof
|
IP66
|
|
Network Module operating temperature
|
-40～＋85°C
|
|
Working temperature
|
-30～＋70°C
|
|
Working Humidity
|
5%～95%
|
|
Certified
|
FCC＆CE＆RoHS
|
|
Dimensions
|
14.9*9.9*7.8（cm）
|
|
Weight
|
350g
|
